Maximum Efficiency in Sports Complexes with a Climate Hub in Spain

Competing in the category:

Building Solutions Award
Location: Spain
Year of submission: 2026
Organisation: Romà Infraestructures: construction and installation; Ecoforest: heat pump manufacturer; Ingeniería Quadrifoli: energy engineering; Quali Geotermia: geothermal drilling; Rosa M. Poyo Perelló / Estudi Arquitectura: architectural design
Sector of application: Commercial
Funding from: Public

Ascó turns a building with apparently contradictory energy needs into an integrated thermal ecosystem. It simultaneously requires large amounts of heating and cooling, yet instead of treating these as separate demands, the project connects them through a geothermal energy hub. The most striking feature is the High Temperature Recovery system in-built in the heat pump: heat extracted from cooling the fitness areas can be reused for swimming-pool heating and DHW instead of being rejected outdoors. The project also recovers heat from humid swimming-pool air and from ventilation, while photovoltaic electricity can be converted into stored thermal energy in the building's water tanks. In other words, the building does not simply generate renewable energy; it continually recovers, reuses and stores energy that would otherwise be wasted. With a COP of 4.5, 133,208 kWh/year of estimated photovoltaic generation, 222,458 kWh/year of estimated total electricity savings and approximately 29.5 tonnes of CO₂ avoided annually, Ascó demonstrates how a complex public sports facility can combine comfort, resilience and energy efficiency in one integrated solution.

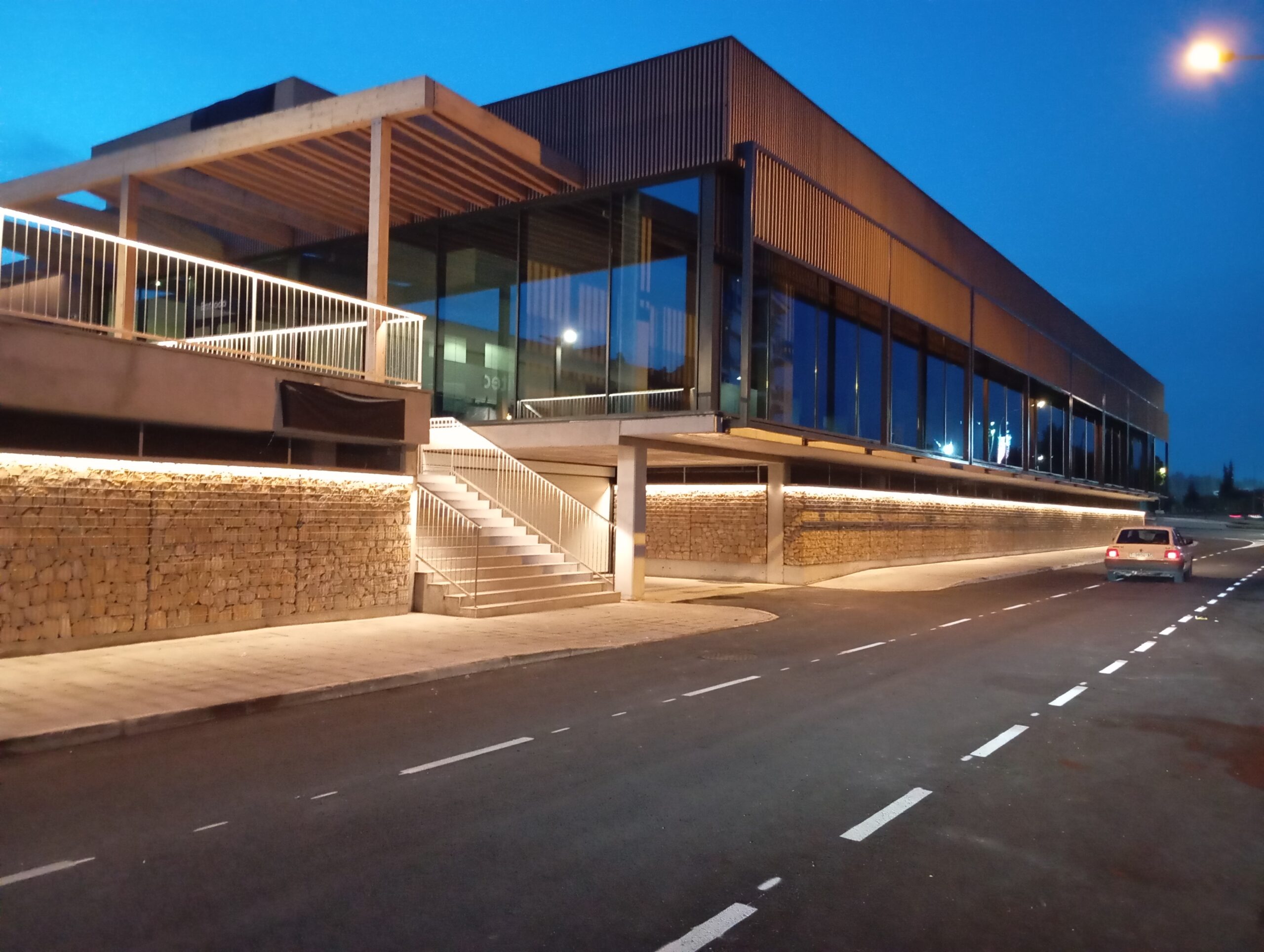

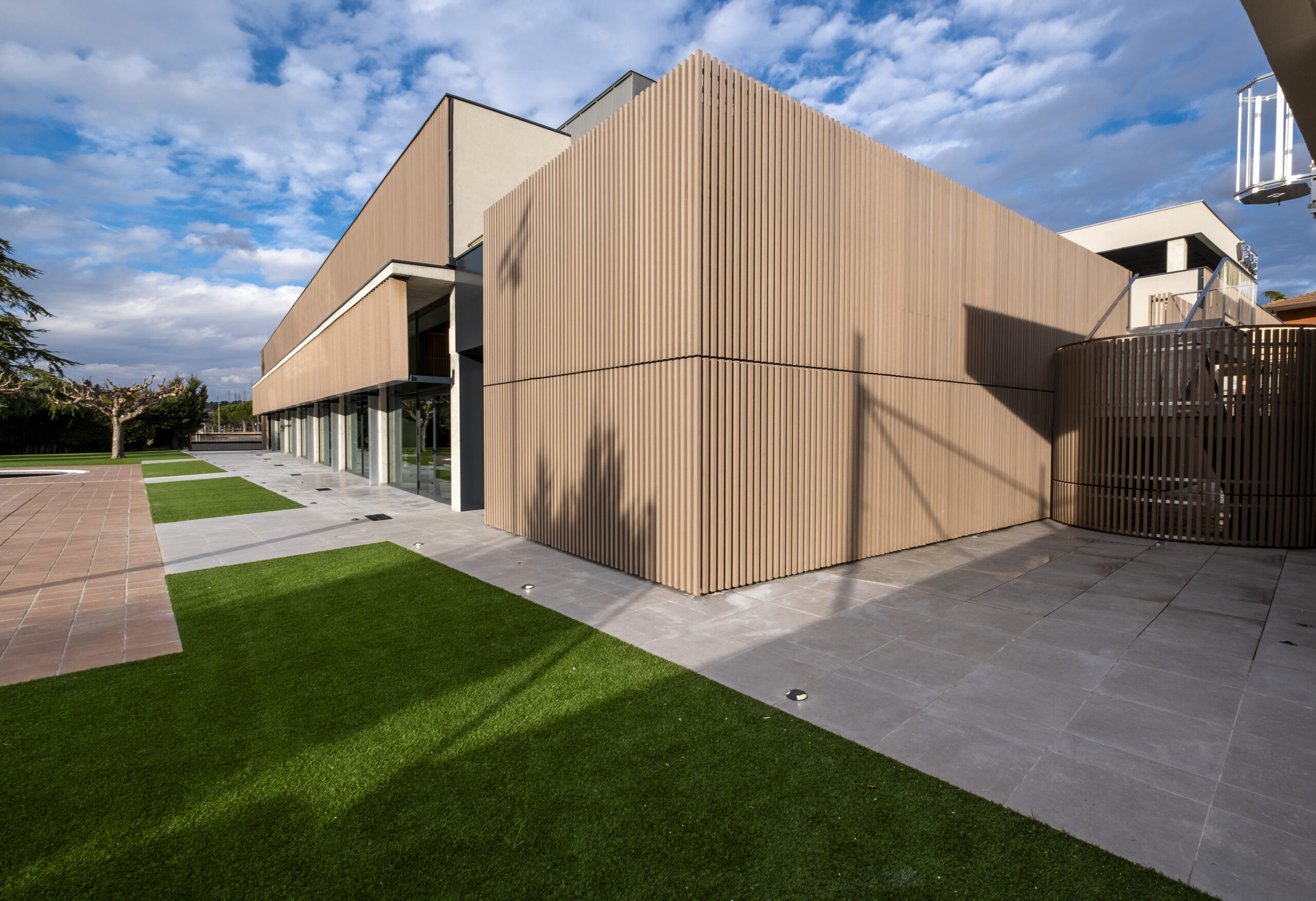

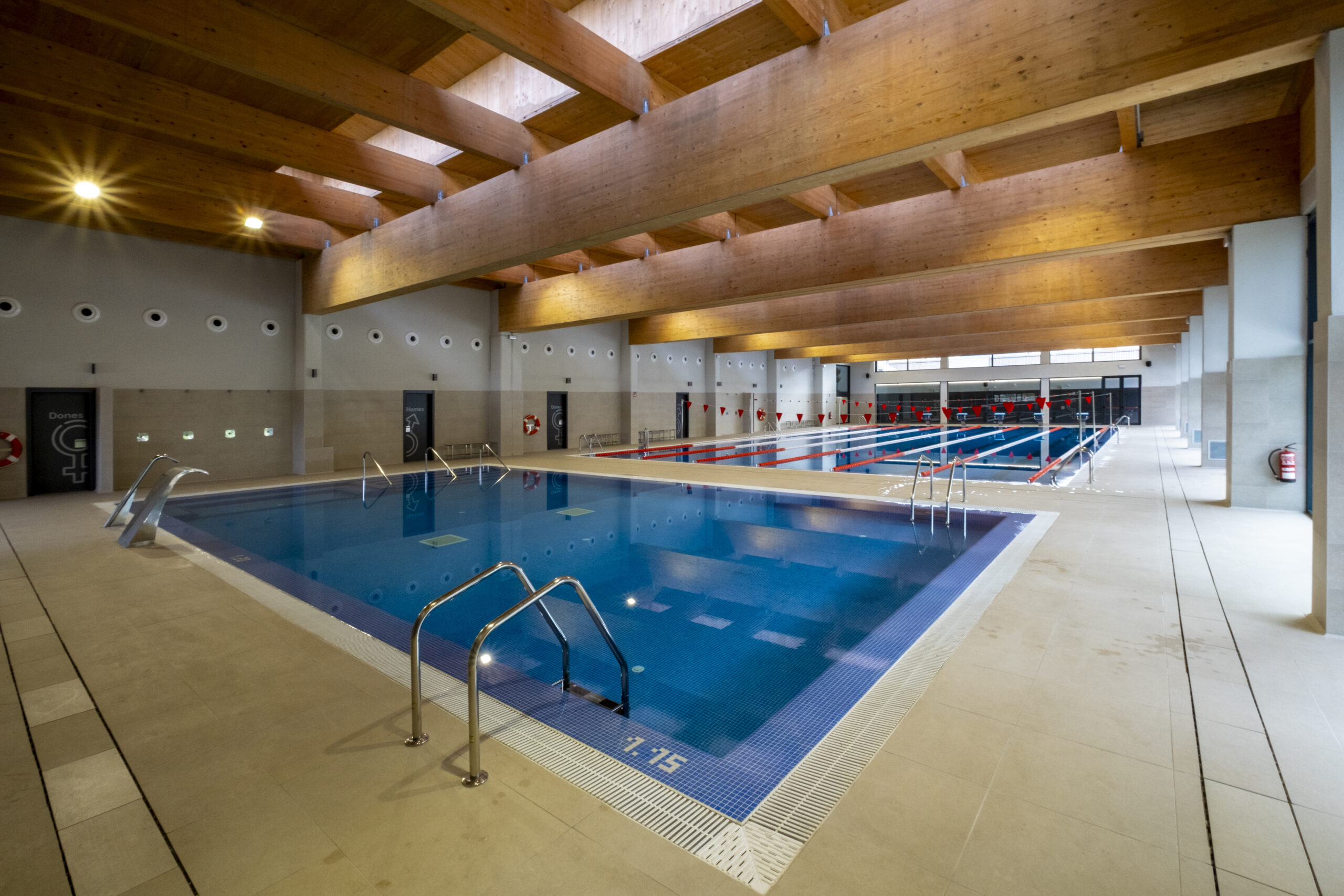

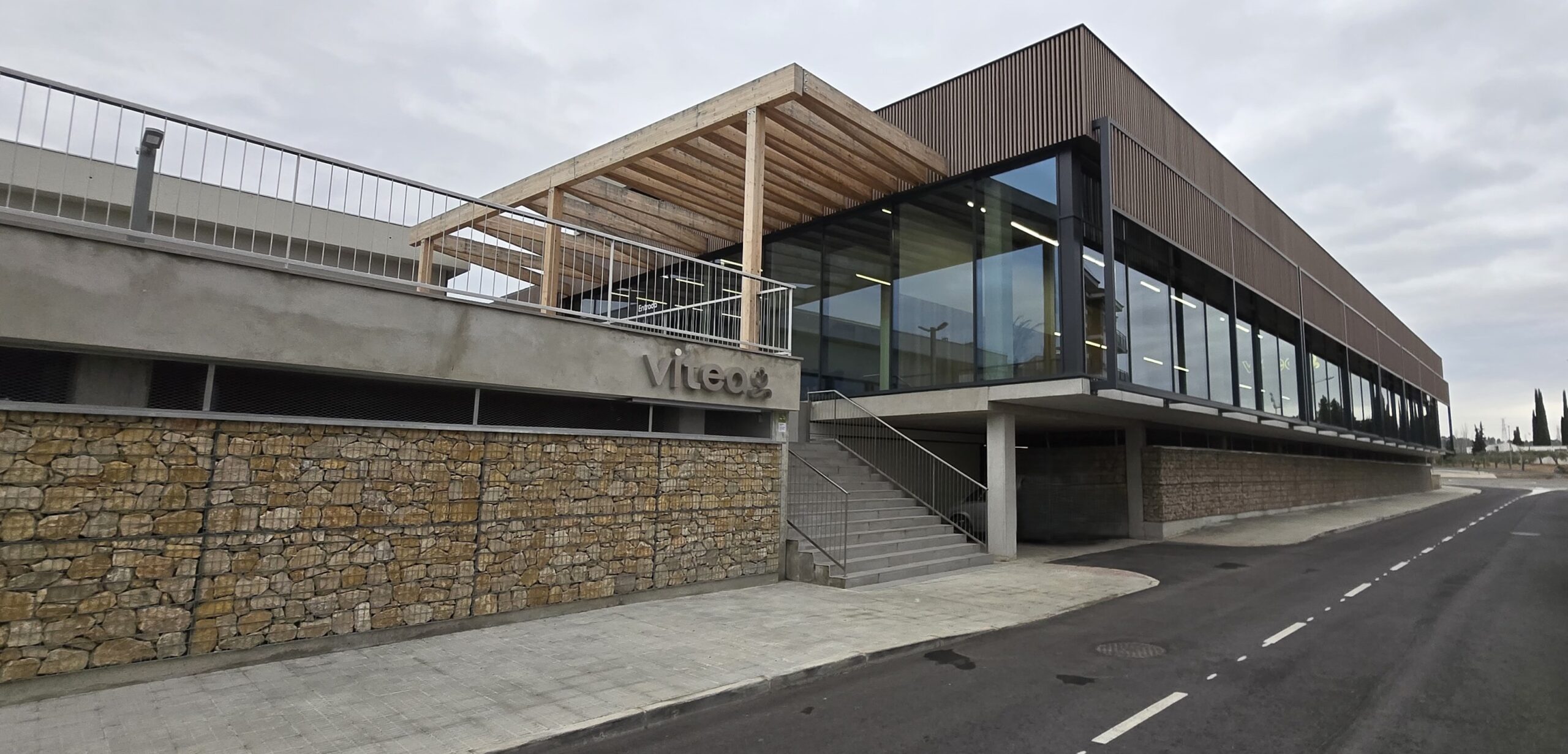

The Complex Lúdic Esportiu Municipal d’Ascó is a high-demand public sports facility requiring simultaneous heating, cooling, domestic hot water (DHW), swimming-pool heating, ventilation and humidity control. The challenge was to provide reliable comfort while minimising energy consumption and operational costs.

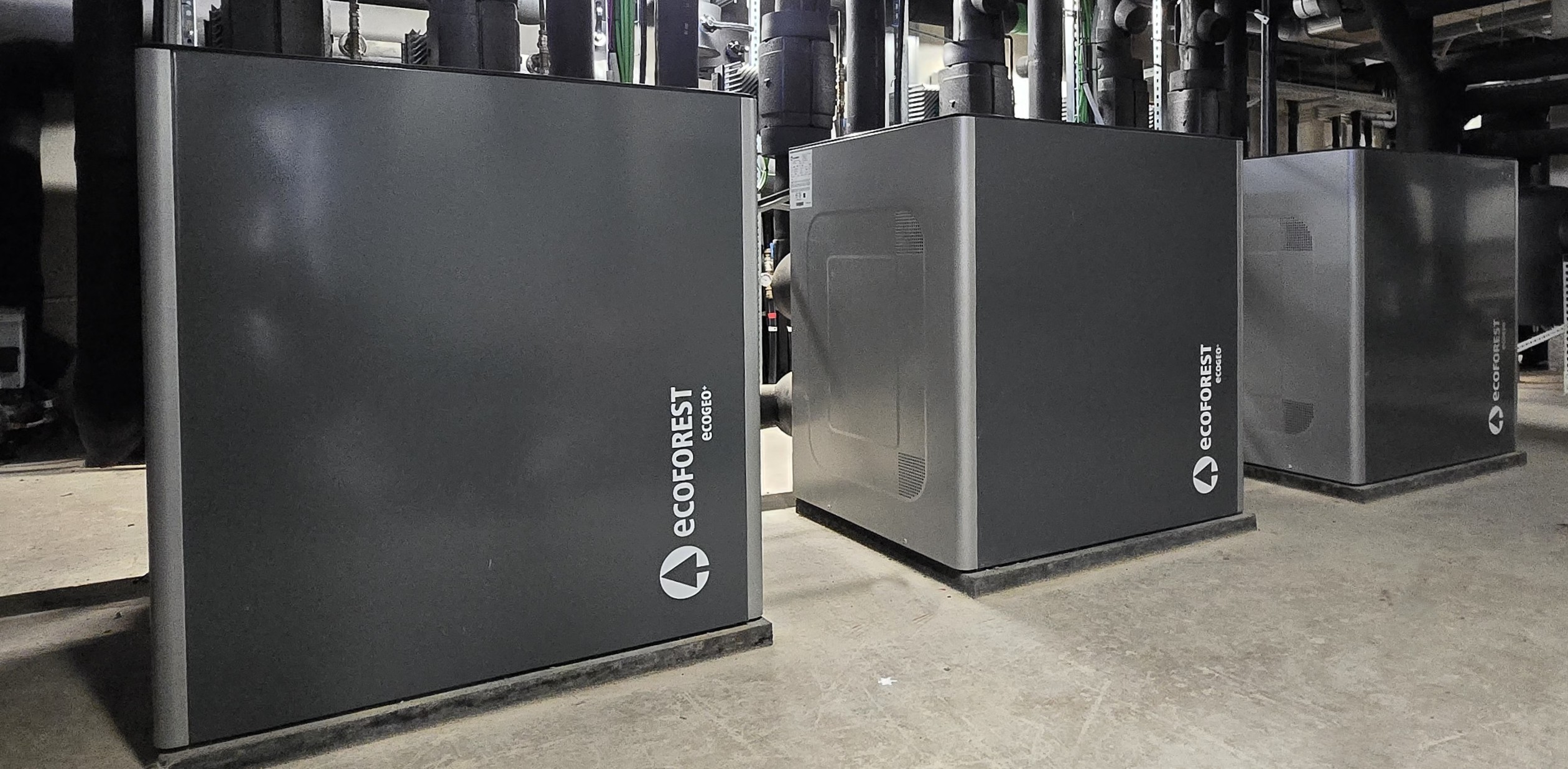

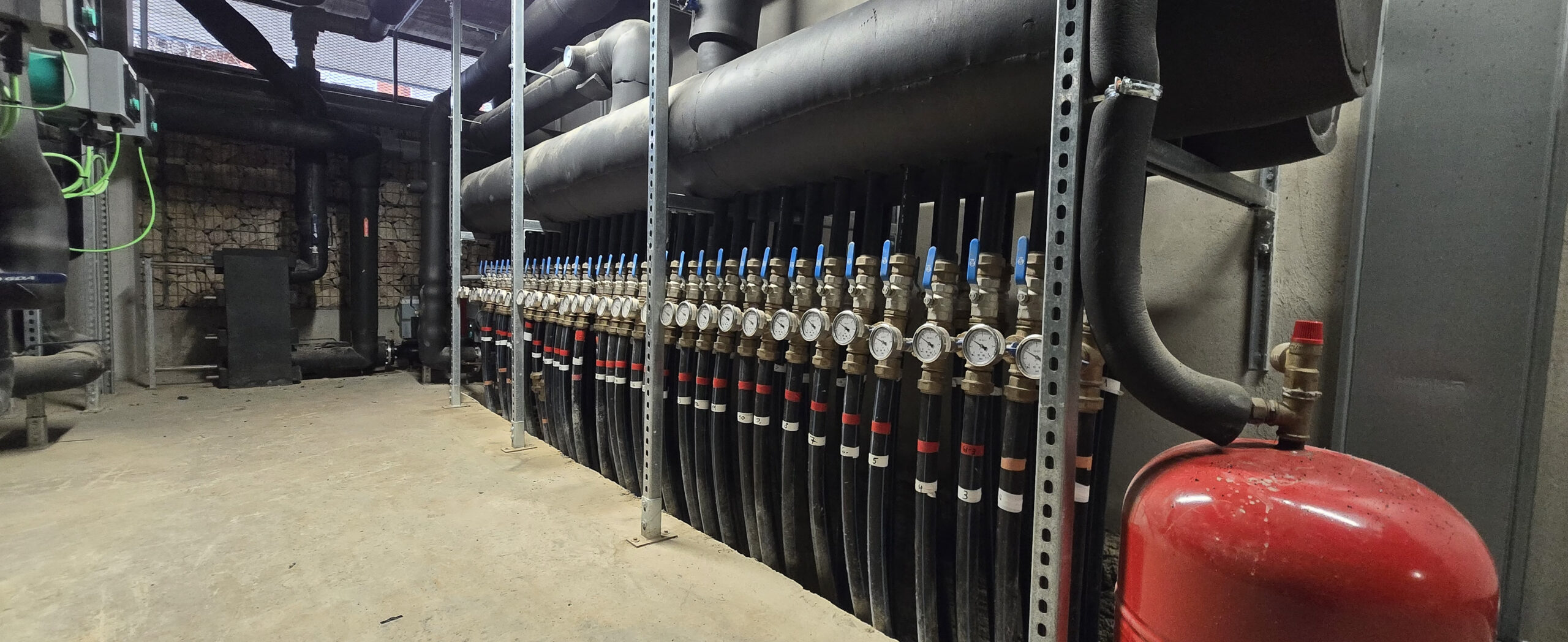

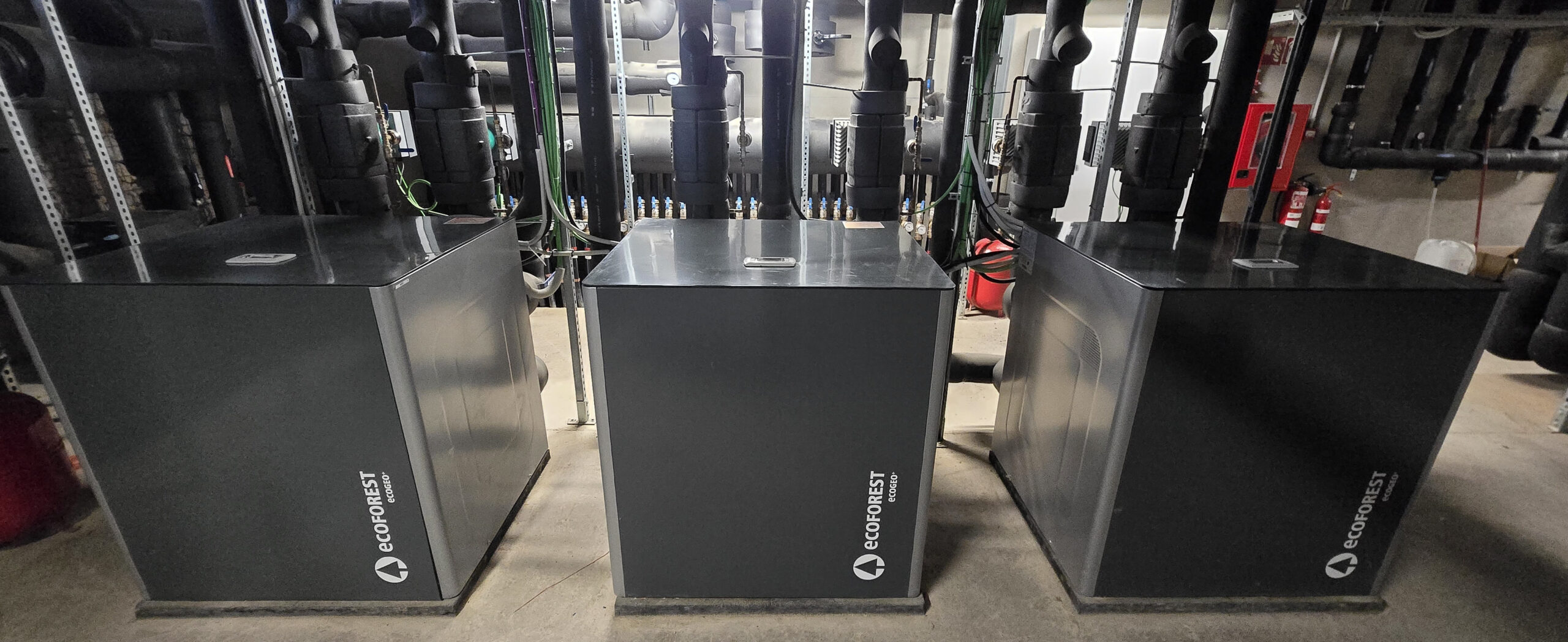

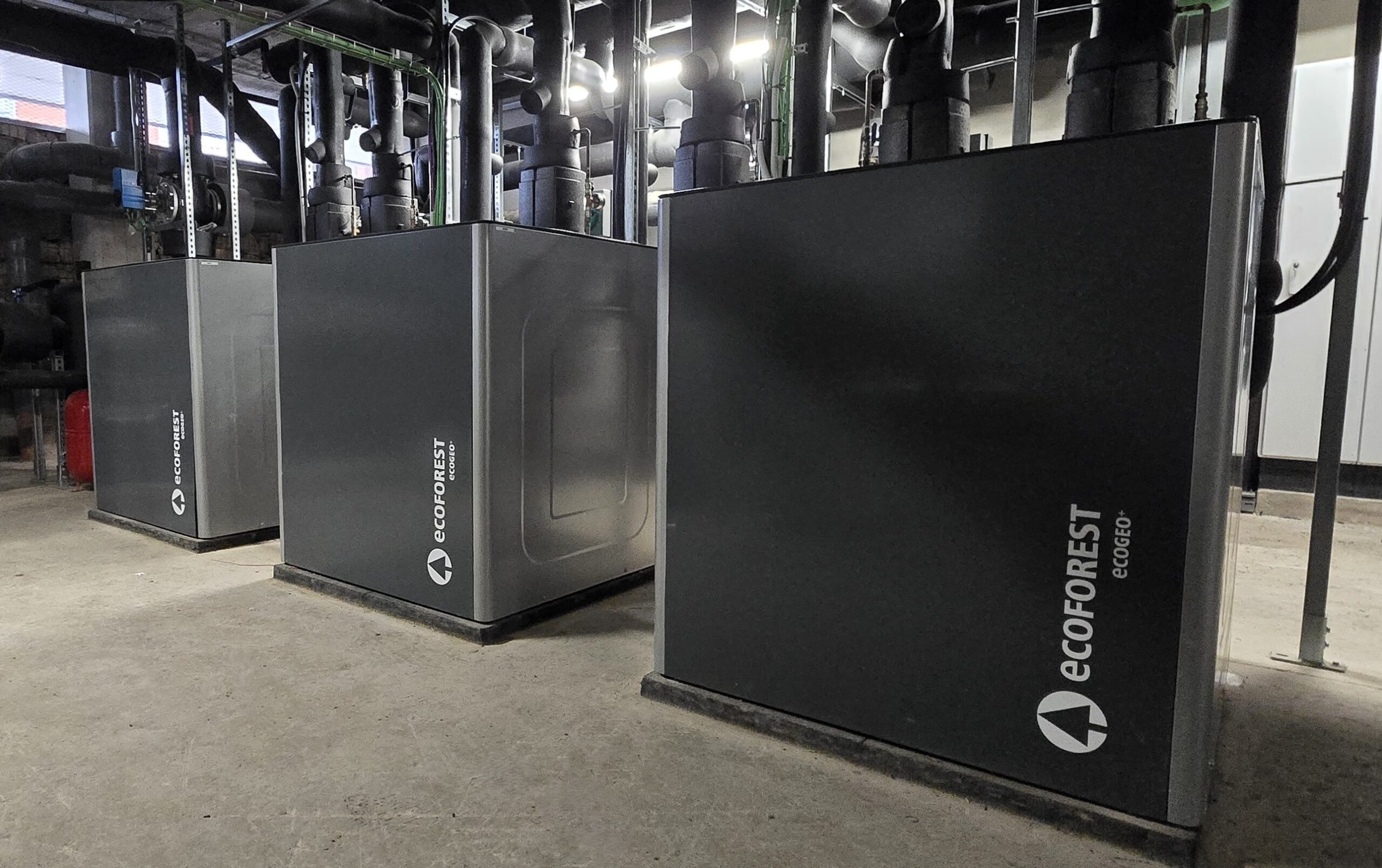

The solution is centred on a geothermal energy hub comprising three Ecoforest ecoGEO+ HP 25-100 water-to-water heat pumps installed in cascade. The system uses 35 vertical geothermal boreholes, each 120 metres deep, providing a stable renewable heat source throughout the year. The heat pumps can deliver heating, cooling and DHW, while Ecoforest’s High Temperature Recovery technology recovers heat generated during cooling and redirects it to the swimming pools and DHW.

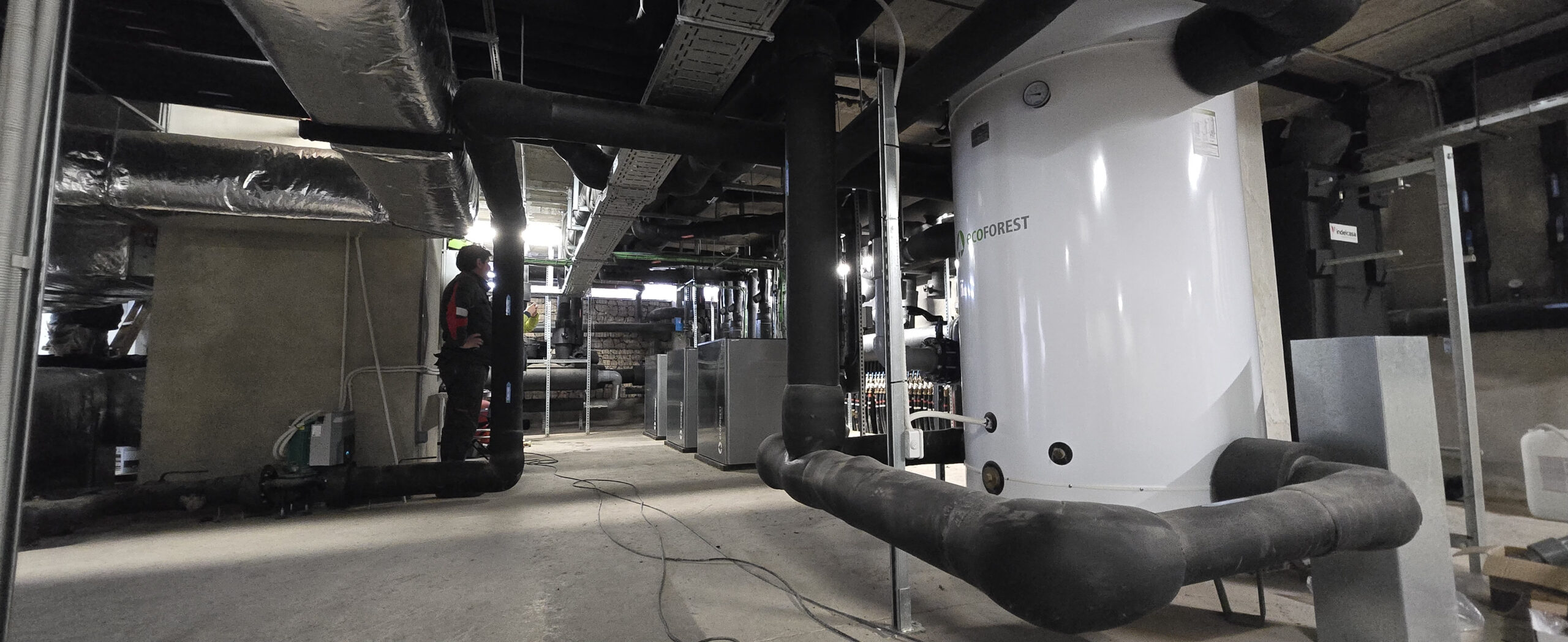

The system is complemented by 193 photovoltaic panels (93.6 kWp), DHW and buffer tanks, an in-built energy manager, a high-efficiency swimming-pool dehumidifier and three heat-recovery air handling units.

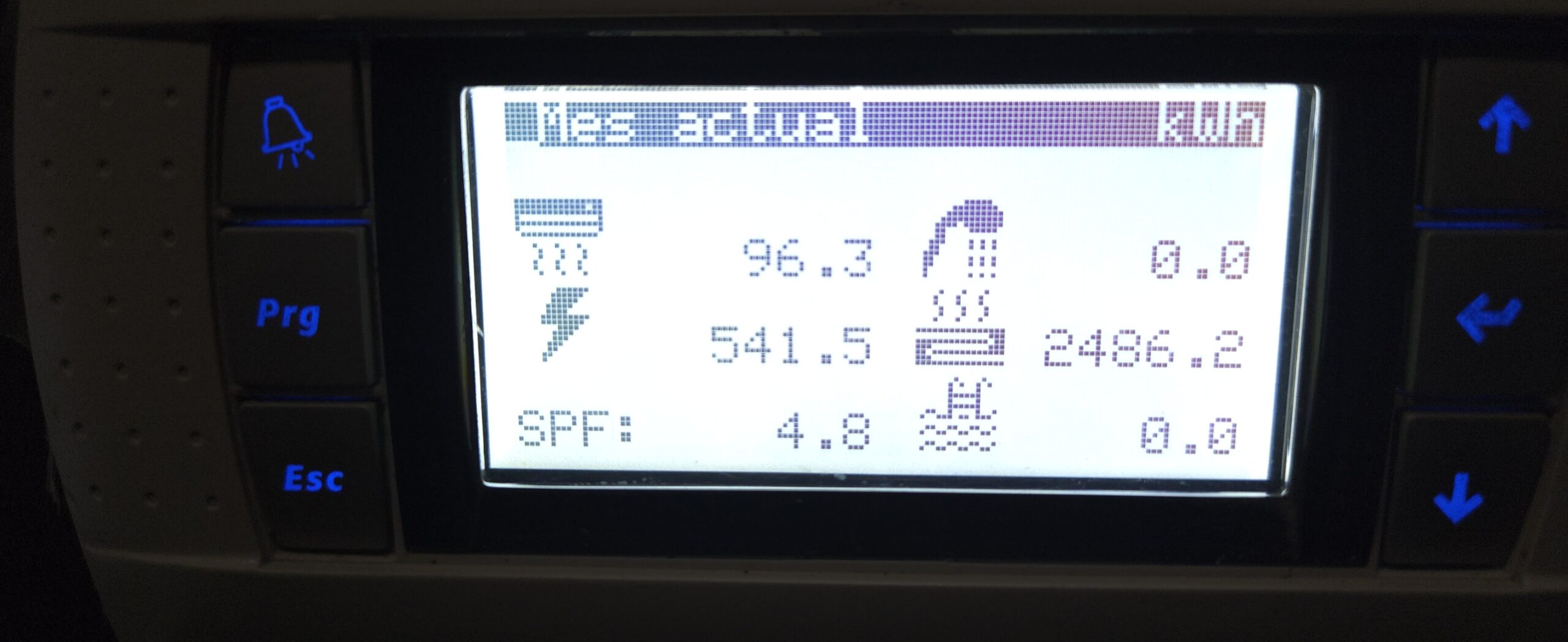

The result is an integrated thermal ecosystem that reuses energy internally rather than rejecting it to the environment. The system achieves a COP of 4.5 and covers a peak thermal demand of 321.4 kW.
